Shenzhen Baohong intelligent manufacturing Co., LTD
1 Years
| Ask Lasest Price | |
| Brand Name : | flysafe |
| Price : | Negotiable |
| Delivery Time : | 5-8 work days |
| Payment Terms : | LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C |
Product Parameters
| Frequency | 700-2700 MHz |
| Test voltage | 28 V |
| Current | 29 A |
| Output | 300 W |
| Gain | 53 dB |
| Output stability | 1 dB |
| Connector | N/ male |
| Output connector VSWR | ≤1.30 (No power and VNA test) |
| Power supply wire | Red+Black+Enable wire |
| Enable Control | High ON Low Off |
| Out shell Size | 170*87*28mm |
| Mount hole | 87*176 mm |
| Weight | 1390 g |
| Work Temperature | -40~+65 ℃ |
| Out shell material | Aluminum |
| Vibration need | Car loadOK |

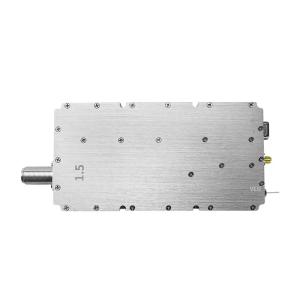

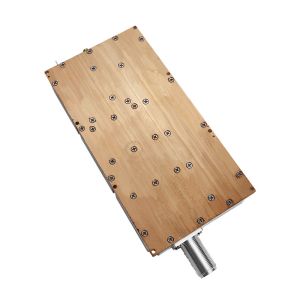

This is a high-performance 700-2700 MHz 300W power amplifier module that provides up to 300W of output power over the 700 MHz to 2700 MHz frequency range. It has excellent signal amplification capability and is suitable for a variety of wireless communications, RF applications and other applications requiring high power signal processing. The compact, modular design makes it easy to install and integrate into a wide range of equipment and systems. Both miniaturized communication equipment and large RF systems can be easily integrated with this power amplifier module, which saves space and improves the overall performance of the system at the same time.
|
|
