| Brand Name : | flysafe |
| Price : | Negotiable |
| Delivery Time : | 5-8work days |
| Payment Terms : | LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C |

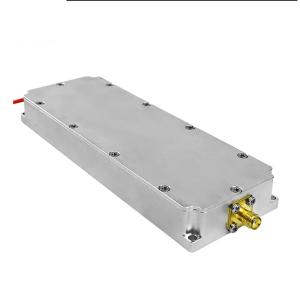

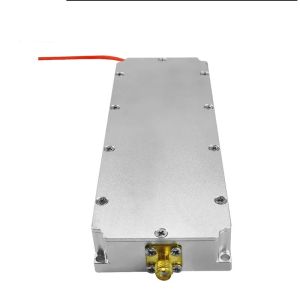

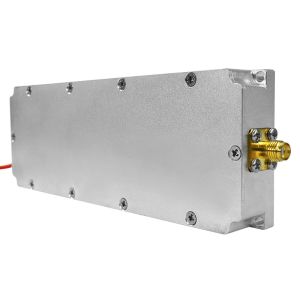

The 30-40W RF Signal Jammer Module with Circulator has a power output of 30 to 40W. It generates a powerful RF jamming signal that effectively blocks RF communications within a specific range. The integrated high-quality circulator ensures unidirectional transmission of the signal and effectively directs the transmitted jamming signal in the direction of the target. The 30-40W RF signal jammer module with circulator ensures powerful coverage and strength of the jamming signal. Advanced power amplification technology and stable power management system ensure the stability and reliability of power output. It supports jamming in a wide range of common RF bands, including 2.4GHz, 5.8GHz and other residential wireless communication bands, as well as some specific professional bands.
No. | Item | Data | Unit | |
1 | Frequency | Customized | MHz | |
2 | Test voltage | 24-28 | V | |
3 | Current | 3 | A | |
4 | Output | 30-40 | W | |
5 | Gain | 41 | dB | |
6 | Output stability | 1 | dB | |
7 | Connector | SMA / Female | ||
8 | Output connector VSWR | ≤1.30 (No power and VNA test) | ||
9 | Standard input | 0-10DB | ||
10 | Power supply wire | Red wire | ||
11 | Enable Control | High ON Low Off | ||
12 | Out shell Size | 140*49*12 | mm | |
14 | Weight | 262 | g | |
15 | Work Temperature | -40~+65 | ℃ | |
16 | Out shell material | Aluminum | ||
17 | Vibration need | Car load OK | ||
|
|
