| Brand Name : | Stationary detection and countermeasure drone equipment (one with two) |
| Model Number : | SZSRYFZ-TCFZ-002 |
| Payment Terms : | MoneyGram,Western Union,T/T,D/P,D/A,L/C |
| Delivery Time : | 5-8 work days |
1. Product Overview
Fixed drone detection and countermeasure linkage system is a low-altitude security equipment integrating drone detection and countermeasure functions. It adopts advanced spectrum detection technology, which can quickly and automatically detect drone signals and obtain multi-dimensional information such as serial number, model, location (latitude, longitude, azimuth), speed, altitude, take-off point, etc. At the same time, linkage of electromagnetic suppression countermeasures equipment can interfere with the intruding drones to realize the drive-off or forced landing and form an electronic fence in the air. The detection equipment is interconnected with the countermeasure equipment, which is usually in a silent state and starts automatically when intruding, supporting the unattended mode, and can be graded and controlled according to the needs. The system supports fixed erection or vehicle-mounted deployment, and can either work offline on a stand-alone basis for quick response, or be networked with other equipment (such as radar, TDOA, decoy equipment, etc.) to form a tight low-altitude protection network. It is suitable for the political core area, border frontier defense, military restricted area, electric power petrochemical park, airport and other scenarios with high requirements for low-altitude security, with core advantages such as high reliability, depth monitoring and flexible deployment, which can effectively guarantee the low-altitude security of the target area.
2. Product features
Flexible deployment: fixed or vehicle-mounted deployment, stand-alone or networked applications to meet diversified needs；
High reliability: electromagnetic compression technology is mature, to ensure stable operation of the system；
Deep monitoring: in-depth analysis of drone signals to provide comprehensive information and rapid response；
Intelligent linkage: interconnection of detection equipment and countermeasure equipment, hierarchical control according to demand, silent in normal times, automatic activation in case of intrusion, support for unattended mode；
Effectiveness guarantee: the countermeasure signal covers the remote control, mapping and positioning frequency bands of mainstream drones, with significant jamming effect.
3. Product parameters
3.1 Functional indicators
countermeasure barrel:
| No. | Frequency band | Power | Remark |
| Classic 1 | |||
| 1 | 420-450MHz | 50W(47dBm) |
|
| 2 | 840-930MHz | 100W(50dBm) |
|
| 3 | 1040-1215MHz | 100W(50dBm) |
|
| 4 | 1210-1390MHz | 100W(50dBm) |
|
| Classic 2 | |||
| 5 | 1560-1630MHz | 50W(47dBm) |
|
| 6 | 2400-2500MHz | 100W(50dBm) |
|
| 7 | 5150-5300MHz | 50W(47dBm) |
|
| 8 | 5150-5300MHz | 50W(47dBm) |
|
| 9 | 5720-5880MHz | 50W(47dBm) |
|
| 10 | 5720-5880MHz | 50W(47dBm) |
|
| jamming distance :800-3000m | |||
detection:
| No. | Index | Parameter | Remark |
| 1 | detection and identification of drone types | DJI, Autel, Feimi, Dahua, Zendi, Haoxiang, Udi and other common brand drones and other homemade traversing machines, WiFi machines and most other models on the market. |
|
| 2 | detecting Frequency Bands | 900M,1.2G,1.4G,2.4G,5.2G,5.8G |
|
| 3 |
can locate drone models | DJI Royal, Air, Mini, FPV, Avata series and Autel nano, lite series drones |
|
| 4 | Detection and positioning distance | 1-10km( Affected by environmental factors ) |
|
| 5 | Detection height | 1-1000m |
|
| 6 | Number of targets that can be detected simultaneously | ≥10 airplanes |
|
| 7 | Simultaneous tracking and display of drone trajectories | ≥5 tracks |
|
| 8 | Positioning Refresh Time | 4-6s(1km away, affected by environmental factors ) |
|
| 9 | azimuthal error | ≤1.5°(RMS) |
|
| 10 | position accuracy | ≤10m |
|
3.2 Safety and standard
| No. | Index | Parameter | Remark |
| 1 | model | SZSRYFZ-TCFZ-002 |
|
| 2 | protection level | IP65 |
|
3.3 Electrical standards
| No. | Index | Parameter | Remark |
| 1 | Power supply | AC220V |
|
| 2 | communication interface | 1950 W |
|
| 3 | output power | 700 W |
|
3.4 Mechanical parameters
| No. | Index | Parameter | Remark |
| 1 | size | classic:L*W*H 513x462x233 mm detector:L*H:500*500 mm |
|
| 2 | weight | classic:35-38 kg detector: 15KG |
|
3.5 Environmental adaptability
| No. | Index | Parameter | Remark |
| 1 | working temperature | －20℃～＋55℃ |
|
| 2 | storage temperature | －40℃～＋65℃ |
|
| 3 | recommended storage temperature | 20~30℃ |
|
| 4 | relative humidity | 80%RH |
|
It can detect, identify and track the black-flying drone, and transmit the above ten frequency bands at the same time to interfere with the drone's wireless control link, GPS link and wireless map transmission signals, and each transmitting frequency band has an independent control switch. The device has the function of displaying the working status, battery power and other working status, and various instructions are eye-catching and intuitive.
4. Product Show
actual picture
packing list
| No. | Items | Q’TY | Unit |
| 1 | detection equipment | 1 | Set |
| 2 | Countermeasure chassis | 2 | Set |
| 3 | antennas | 10 | Set |
| 4 | tripod | 1 | Set |
| 5 | network cable | 3 | pcs |
| 6 | Chassis Handle Controller | 1 | Set |

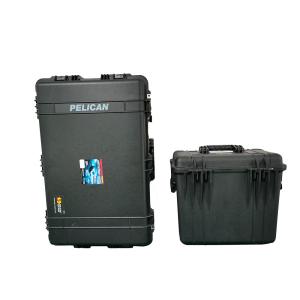

| 7 | outer packing airline box | 3 | Set |
| 8 | power cable | 3 | pcs |
| 9 | Connect cable | 1 | pcs |
Before you start using, please check if all the above items are included in the equipment package. If any are missing, please contact us.
|
|
